LKS-1000mm Universal Stainless Steel Clamping Ties
1. Material: 201/304/316 stainless steel
2. Width: 10mm
3. Thickness: 0.2mm
4. Usage: for binding communication cables, labels, boats, mining industry, advertisement, industry etc.
5. Surface Treatment: spray (spread with plastics or plastic-coating)
6. Specifications:
Model No. | Width(mm) | Length(mm) | Thickness(mm) | Max. Bundle Dia. | ||||
Inch | mm | Inch | mm | Inch | mm | Inch | mm | |
LKS-400 | 0.4 | 10 | 15.7 | 400 | 0.008 | 0.2 | 4.3 | 110 |
LKS-500 | 19.7 | 500 | 5.4 | 138 | ||||
LKS-600 | 23.6 | 600 | 7.1 | 180 | ||||
LKS-700 | 27.6 | 700 | 8.3 | 210 | ||||
LKS-800 | 31.5 | 800 | 9.4 | 240 | ||||
LKS-900 | 35.4 | 900 | 10.6 | 270 | ||||
LKS-1000 | 39.4 | 1000 | 11.8 | 300 | ||||
LKS-1100 | 43.3 | 1100 | 13.4 | 340 | ||||
LKS-1200 | 47.2 | 1200 | 14.6 | 370 | ||||
LKS-1300 | 51.2 | 1300 | 15.7 | 400 | ||||
LKS-1400 | 55.1 | 1400 | 16.9 | 430 | ||||
LKS-1500 | 59 | 1500 | 18.1 | 460 | ||||
LKS-2000 | 78.7 | 2000 | 23.6 | 600 | ||||
LKS-3000 | 118.1 | 3000 | 36.2 | 920 | ||||
LKS-4000 | 157.5 | 4000 | 47.2 | 1200 | ||||
LKS-5000 | 196.9 | 5000 | 59 | 1500 | ||||
Universal Stainless Steel Cable Tie Operating Manual
| Parts Name | ||
| ①Plum blossom Washer | ⑤Small bracket | |
| ②Round Washer | ⑥Stainless steel band | |
| ③Spindle | Attention: | |
| ④Big bracket | Please wear gloves when operating | |
Step 1:Insert the tail of ⑥ stainless steel band into the slot of ③spindle.

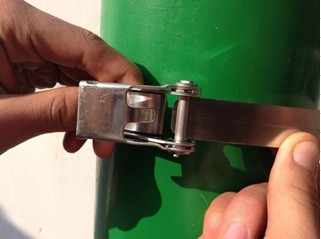

Step 2:Hold ⑤bracket by left hand,tighten up the ⑥steel band by right hand.

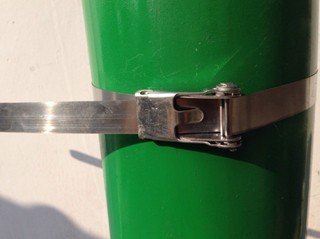

Step 3:Hold the ⑤small bracket by left hand,pushing the ④big bracket back and forth,until the steel band strapped tightly.

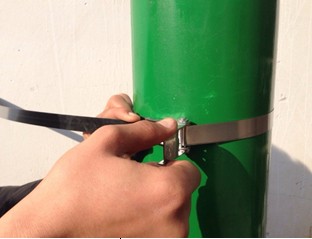

Step 4:After strapped tightly,hold the steel buckle by left hand,take hammer by right hand,hammering the ④small bracket and ⑤big bracket down.
Step5:At the end, remove the rest ⑥steel band by scissors.
