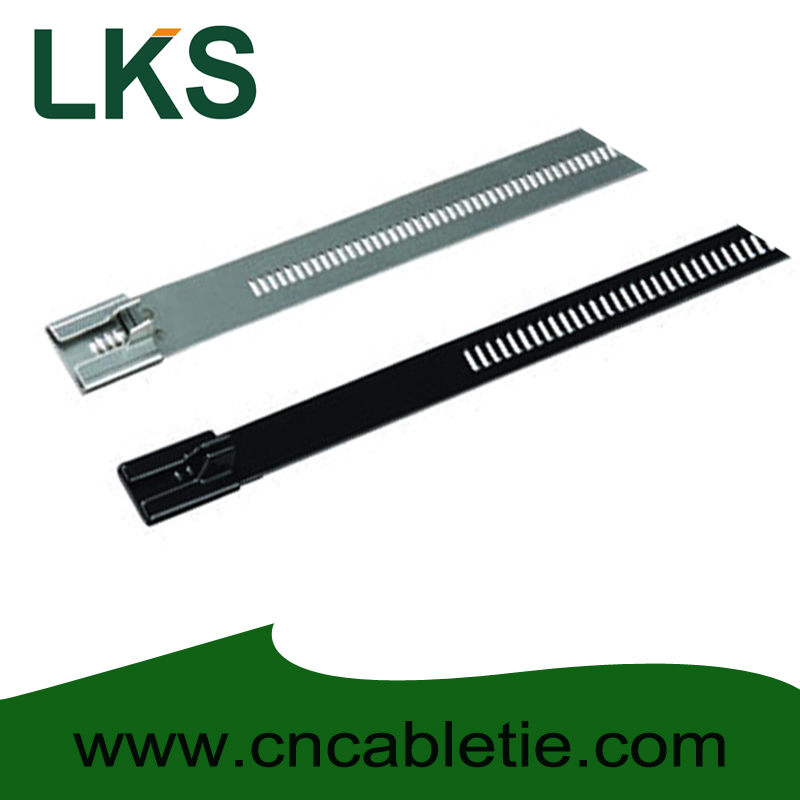

Ladder Type stainless steel cable tie
Description:

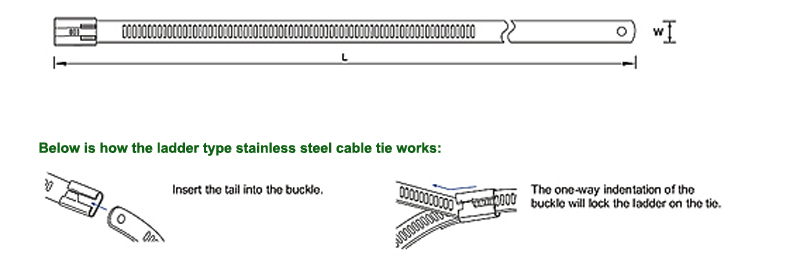

．Unique multi-locking mechanism design on the ladder strip can be
applied without crimping tools.
Self-locking for fast, easy application.
．Extended ladder slot provides larger bundle diameter with the same
length of tie.
．Large round slot at the tail-end allows application of hook-type
tools.
．Uncoated tie for high temperature applications.
．Coated surface provides excellent chemical and weathering
resistance, and superior insulation and protection of cables.
Material:
Stainless steel type:#201,#304 & #316.
Coating: PVC.
Item No. | Width | Length | Max. Bundle Dia. | Tensile Strength | Package | ||
mm/inch | mm/inch | mm | inch | lbs | kg | pcs/bag | |
7×150 | 7/0.276 | 150/5.9 | 43 | 1.69 | 250 | 113.4 | 100 |
7×200 | 200/7.87 | 57.3 | 2.26 | 100 | |||
7×250 | 250/9.84 | 76.4 | 3.01 | 100 | |||
7×300 | 300/11.8 | 90.7 | 3.57 | 100 | |||
7×350 | 350/13.78 | 103 | 4.1 | 100 | |||
7×400 | 400/15.75 | 114 | 4.49 | 100 | |||
7×450 | 450/17.7 | 138.5 | 5.45 | 100 | |||
7×500 | 500/19.69 | 148 | 5.83 | 100 | |||
7×550 | 550/21.65 | 162 | 6.38 | 100 | |||
7×600 | 600/23.62 | 178 | 7 | 100 | |||
7×650 | 650/25.59 | 192 | 7.56 | 100 | |||
7×700 | 700/27.56 | 198 | 7.8 | 100 | |||
7×750 | 750/29.53 | 212 | 29.5 | 100 | |||
7×800 | 800/31.49 | 226 | 8.9 | 100 | |||
7×850 | 850/33.46 | 240 | 9.45 | 100 | |||
12×300 | 12/0.472 | 300/11.8 | 90.7 | 3.57 | 100 | ||
12×350 | 350/13.78 | 103 | 4.1 | 100 | |||
12×400 | 400/15.75 | 114 | 4.49 | 100 | |||
12×450 | 450/17.7 | 118 | 5.45 | 100 | |||
12×500 | 500/19.69 | 148 | 5.83 | 100 | |||
12×550 | 550/21.65 | 162 | 6.38 | 100 | |||
12×600 | 600/23.62 | 178 | 7 | 100 | |||
12×650 | 650/25.59 | 192 | 7.56 | 100 | |||
12×700 | 700/27.56 | 198 | 7.8 | 100 | |||
12×750 | 750/29.53 | 212 | 29.5 | 100 | |||
12×800 | 800/31.49 | 226 | 8.9 | 100 | |||
12×850 | 850/33.46 | 240 | 9.45 | 100 | |||
12×900 | 900/35.43 | 254 | 10 | 100 | |||
12×950 | 950/37.4 | 268 | 10.55 | 100 | |||
12×1000 | 1000/39.37 | 282 | 11.1 | 100 | |||
