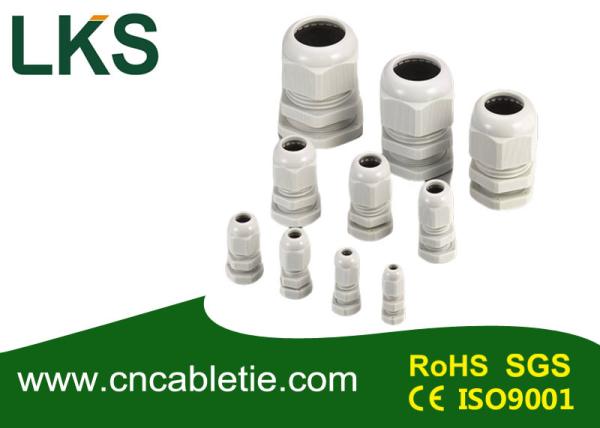

Nylon Waterproof Cable Gland Long Thread METRIC Type

Product Categories

YUEQING LKS CABLE TIE CO.,LTD

Contact Now

Buy cheap Nylon Waterproof Cable Gland Long Thread METRIC Type from wholesalers

Buy cheap Nylon Waterproof Cable Gland Long Thread METRIC Type from wholesalers

Nylon Waterproof Cable Gland Long Thread METRIC Type

Ask Lasest Price
Brand Name :	LKS
Certification :	RoHS,SGS,CE,ISO9001
Payment Terms :	L/C, T/T
Supply Ability :	100000pcs per day
Delivery Time :	5days

Add to Cart

Product Details
Company Profile

Nylon Waterproof Cable Gland Long Thread METRIC Type

Technical Information:

Model: METRIC Type
Material: PA6/PP.
Size: M12 to M66.
Color:White/Grey/Black/Red or OEM Color.
Protection Level: IP68.
Weather Strip: NBR, EPDM.
Working temperature:-40℃ to 100℃,short time to 120℃.
Packing:100pcs/bag,50pcs/bag,20pcs/bag,5pcs/bag.
Port: Shanghai/Ningbo.

Description:

Thread: Metric
Materials:Part A.C.F is made of UL approved nylon PA66(fire rating UL94V-2),part B.D butadiene rubber(NBR)or EPDM.
Protection Degree:IP68(within fasteing range,O type was her will be used in tightening part)
Working Temperature:-40℃ to 100℃ in static state,instantaneous heat resistance up to 120℃; -20℃ to 80℃ in dynamic state,instantaneous heat resistance up to 100℃.
Product Features:Wide rang for fastening cables,strong tensile strength,waterproof,dustproof,resistant to acid and alkali,alcohol,grease and general solvents.
Color:Light grey(RAL7035),black(RAL9005),other color can be customized according to request.

Model	Cable Range(mm)	Thread O.D AG()mm	Thread Length GL(mm)	Spanner Size(mm)
M12×1.5	3-6.5	12	8	18/17
M12×1.5	2月5日	12	8	18/17
M12×1.5	4月8日	12	8	18/19
M12×1.5	2月6日	12	8	18/19
M16×1.5	4月8日	16	8	22/19
M16×1.5	2月6日	16	8	22/19
M16×1.5	5月10日	16	9	22/22
M16×1.5	3月7日	16	9	22/22
M18×1.5	5月10日	18	9	24/22
M18×1.5	3月7日	18	9	24/22
M20×1.5	6月12日	20	10	27/24
M20×1.5	5月9日	20	10	27/24
M20×1.5	10月14日	20	10	27/27
M20×1.5	8月12日	20	10	27/27
M22×1.5	10月14日	22	10	30/27
M22×1.5	8月12日	22	10	30/27
M24×1.5	12月16日	24	10	30/27
M24×1.5	10月14日	24	10	30/27
M25×1.5	13-18	25	10	33/33
M25×1.5	9月16日	25	10	33/33
M27×1.5	13-18	27	10	36/33
M27×1.5	9月16日	27	10	36/33
M30×1.5	16-20	30	11	37/36
M30×1.5	13-18	30	11	37/36
M32×1.5	16-20	32	11	40/35
M32×1.5	13-18	32	11	40/35
M32×1.5	18-25	32	13	40/42
M32×1.5	13-20	32	13	40/42
M36×1.5	18-25	36	12	46/42
M36×1.5	13-20	36	12	46/42
M40×1.5	22-32	40	15	50/52
M40×1.5	20-26	40	15	50/52
M50×1.5	32-40	50	15	62/60
M50×1.5	25-31	50	15	62/60
M63×1.5	37-44	63	15	75/68
M63×1.5	29-35	63	15	75/68
